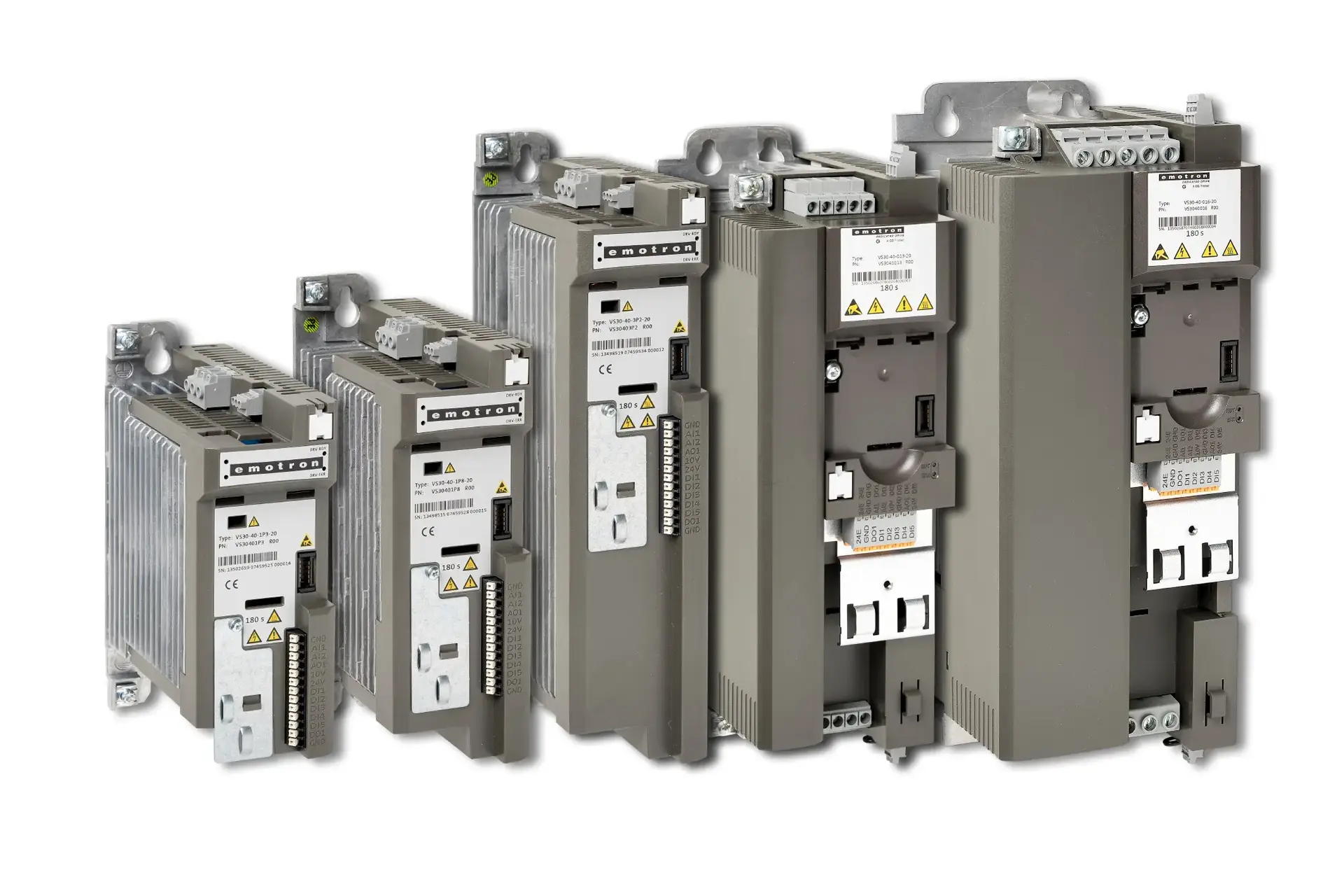

Although small in size, our new Emotron VS10 and VS30 drives are equipped with several advanced features. The compact format offers flexible installation and the user-friendly set-up means your system will be operational in no time. Emotron VS10 and VS30 offer reliable and cost-efficient operation of your pumps, fans and compressors as well as constant torque applications.
The complete series covers motors in the power range of 0.25 – 7.5 kW.
EMOTRON VS10 & VS30
Rated power
VS10 0.25-2.2 kW / 0.33-3.0 hp
VS30-23 0.25-2.2 kW / 0.33-3.0 hp
VS30-40 0.37-7.5 kW / 0.5-10 hp
Supply voltage
VS10: 1-phase, 190–240V +/-10%
VS30-23: 1/3 phase, 190–240V +/-10%
VS30-40: 3 phase, 380–480V +/-10%
Rated current
VS10 1.7-9.6 A
VS30-23 1.7-9.6 A
VS30-40 1.3-16.5 A @400V / 1.1-14 A @480V
Protection class
IP20 / NEMA250
Approvals
CE, UL, cUL, RoHS2
The compact format offers flexible installation and the user-friendly set-up will have your system up-and-running in no time.
Flexibility begins with the compact bookshelf design format, which makes the units easy to install. Systems using the VS10/VS30 are set up quickly, ready to deliver smooth and cost-effective control of your application.
For simplicity, there is a built-in PID controller for process control, and the units have efficiency class IE2 in accordance with EN 50598-2 (from the Ecodesign Directive). Robust motor control is assured thanks to sensor-less vector control. The package can also be enhanced with an optional hot-pluggable control panel.
The VS10 range covers nominal ratings of 0.25-2.2 kW (1-phase 230V). The larger VS30 spans 0.37-7.5 kW (two series; 1/3-phase 230V, 3-phase 400/480 V). The smallest of these IP20-rated units are 60 x 155 x 130 mm, while the largest are only 120 x 275 x 130 mm.
A number of options let you customise the Emotron VS10/30.
• CAN Open Fieldbus communication interface
• Modbus-RTU RS485 Serial communication interface
• USB Diagnostic communication module
• WiFi Diagnostic communication module (available later)
0.33 to 3 hp
4 to 10 hp
Emotron VS10 & VS30
Quality document ISO14001;2015
Quality document ISO9001;2015
DNV TYPE APROVAL certificate
Quality document, UL approval VS10/30 & DSV
